- Capacity : ≤542m3/h
- Partition Size ：25μm~130μm
- Diameter of Overflow Port ：30mm~280mm

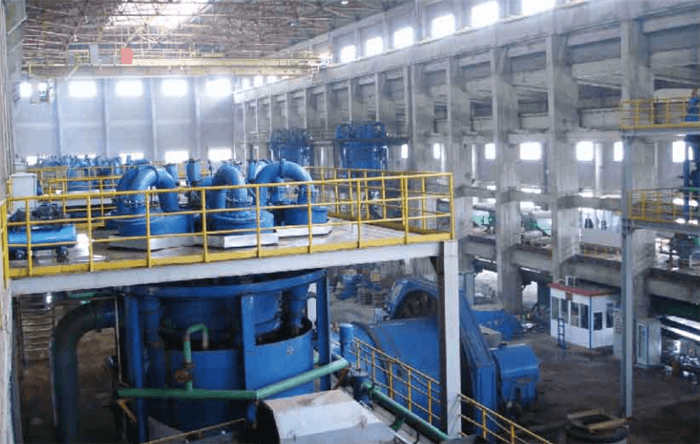

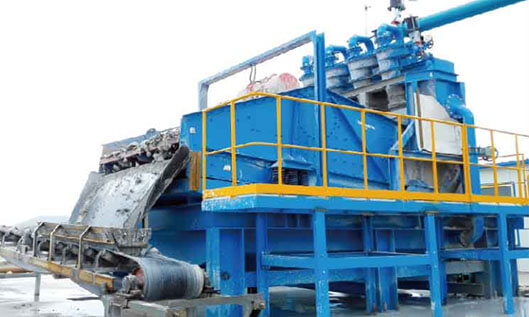

Introduction:
A hydrocyclone with involute feeding
Capacity :
≤542m3/h
Improvement:
Unique involute feeding eliminating the disturbance, reduces wear and improves the classification efficiency
Advantages:
The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification. The rational length proportion of column and cone and reasonable insert depth of vortex finder Wear – resistant rubber as liners prolongs the service life by 2-4 times
Product Structure:
The working principle of VOSOTOSUN hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.
|
Model |
Spec. |
Processing Capacity (m3/h) |
Partition Size (μm) |
Diameter of Overflow Port (mm) |
Diameter of Dust- Setting Nozzle (mm) |
Inlet Pressure (MPa) |
|
XC II F 150 |
150 |
10 ~23 |
25 ~74 |
30 ~50 |
8~22 |
0.06~0.15 |
|
XC II F 200 |
200 |
17 ~38 |
28 ~80 |
40 ~65 |
16 ~32 |
|
|
XC II F 250 |
250 |
24 ~53 |
30 ~82 |
65~100 |
16 ~40 |
|
|
XC II F 300 |
300 |
40~100 |
36 ~90 |
65~120 |
20 ~40 |
|
|
XC II F 350 |
350 |
56~118 |
40~100 |
80~120 |
30 ~70 |
|
|
XC II F 375 |
375 |
74~157 |
42~105 |
90~135 |
30 ~70 |
|
|
XC II F 450 |
450 |
90~192 |
44~110 |
100~150 |
30 ~70 |
|
|
XC II F 500 |
500 |
128~300 |
50~115 |
130~220 |
35~100 |
|
|
XC II F 550 |
550 |
155~368 |
52~120 |
140~240 |
35~100 |
|
|
XC II F 600 |
600 |
200~468 |
57~125 |
160~260 |
65~110 |
|
|
XC II F 660 |
660 |
237~524 |
60~130 |
180~280 |
80~150 |
