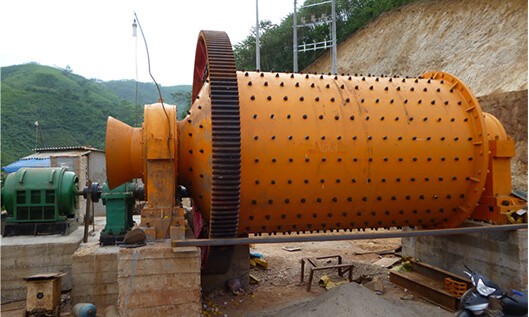

OVERFLOW TYPE BALL MILL

Cylinder Diameter: 900mm~4500mm
Cylinder Length: 1800mm~6100mm
Type: Overflow Type Ball Mill

Share This Product:

BRIGHT SPOT OF PRODUCT
MAIN PARAMETER PRODUCT
MORE

【Introduction】:

A ball mill with simple structure

【Capacity】:

0.17～170t/h

【Improvement】:

Wet type overflow ball mill is lined with VOSTOSUN wear-resistant rubber sheet with excellent wear resistance, long service life and convenient maintenance

The overflow ball mill has relatively simple structure--the advantage of no grate fence, high fineness in grinding, and less ball loading etc. Widely used in the second segment or place of comparably finer product.

When the motor drive the pinion and the big gear rotating, the material will get into the cylinder from the end through the hollow shaft neck from the material feeding device. The cylinder are loaded certain weight of ball as the grinding media. The material get crushed under the ball function and discharged from the hollow shaft in the material feeding end. As the grinded material get discharged by overflow from the neck, the mill is called overflow type ball mill, a widely used ball mill.

The structure of overflow type is basically the same with the grate one, only with no material discharging grate in the cylinder outlet end. Besides, it has reverse screw blade on the surface of the hollow shaft inner liner cover. It can return the small ball in the slurry and overflowed rough ore back to the mill. As the grinded material get flowed freely from the hollow shaft neck, the slurry level must be higher than the lowest mother line level of the discharging shaft neck. Therefore, it is called high surface slurry mill sometimes. It is of simple structure and easy to maintain. And as it has fine product, it is usually used in grinding the fine ore, that is the size less than 0.2mm or the second segment in the two continuous stages

Features:

1.Jack-up device, easy maintenance;

2.The hydrostatic and hydrodynamic bearings ensure the smooth operation;

3.Low speed transmission is easy for starting and maintenance;

4.The oil-mist lubrication device guarantees reliable performance of bearings;

5.The gas clutch adopts the flexible start-up model.

Model	Cylinder Diameter (mm)	Cylinder Length (mm)	Motor Model	Motor Power (kW)	Length (mm)	Width (mm)	Height (mm)	Effective Volume (m3)	Max. Ball Load (t)	Weight (kg)
MQY0918	900	1800	Y225M-8	22	5080	2300	2015	0.9	1.66	6078
MQY1212	1200	1200	Y225S-8	18.5	5788	2994	2540	1.14	2.4	11473
MQY1224	1200	2400	YR280S-8	55	6112	2794	2540	2.28	3.8	12308
MQY1515	1500	1500	JR115-8	60	5766	2945	2600	2.2	6.4	15424
MQY1530	1500	3000	JR125-8	95	7979	2945	2600	5	10	18690
MQY2122	2100	2200	JR128-8	155	8070	4840	3795	6.6	14	47800
MQY2130	2100	3000	JR137-8	210	8870	4840	3795	9	20	47220
MQY2136	2100	3600	JR137-8	210	9300	4840	3795	10.8	22	52010
MQY2145	2100	4500	JR148-6	310	11029	4738.6	3300	13.5	23.8	58305
MQY2430	2400	3000	JR1410-8	280	9710	4778	4120	12.1	23	65880
MQY2721	2700	2100	JR1410-8	280	9400	5600	4700	10.7	24	63900
MQY2736	2700	3600	TDMK400-32	400	13049	5800	4680	17.8	32	96570
MQY2740	2700	4000	TDMK400-32	400	11850	5667	4496	20.4	40	78800
MQY3231	3200	3100	TDMK630-36	630	12750	6760	5150	21.4	45	107660
MQY3245	3200	4500	TDMK630-36	630	14356	7200	5152.5	32.8	65	130283
MQY3254	3200	5400	TM1000-36/2600	1000	15800	6760	5200	37.2	73	121000
MQY3645	3600	4500	TM1000-36/2600	1000	15000	7200	6326	41.8	76	135000
MQY3650	3600	5000	TM1250-40/3250	1250	17157	7755	6326	46.4	86	145000
MQY3660	3600	6000	TM1250-40/3250	1250	19000	7755	6326	55.7	102	154000
MQY3690	3600	9000	TDMK1800-30	1800	28000	4600	5600	83	163	212000
MQY3867	3800	6700	TDMK1600-30	1600	19000	8200	7100	70	130	186000
MQY4067	4000	6700	TDMK1800-30	1800	15600	9600	7300	78	138	207000
MQY4561	4500	6100	TDMK2200-30	2200	18200	10500	7600	93	151	238000
