- Maximum feed size (mm): ＜25mm
- Output size (mm): 0.044~0.165
- capacity (t/h): 0.6~4.5

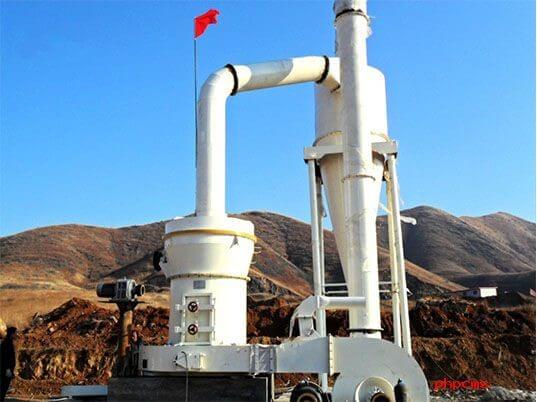

Raymond Mill is the first generation grinding mill of Liming Heavy Industry. This machine takes advantages of small covered area, low investment costs and low consumption, which can be widely used in desulfurization, metallurgy, non-metallic ore milling, etc. industries.
After many years of practice and improvement, its structure is getting perfect day by day.
For low consumption, low investment, environment friendly , small occupation area, and more efficient than the traditional mill, it is widely used in the field of metallurgy, building materials, chemical industry and mining to process powder. The series is used in grinding the non-flammable and non-explosive stuff which has the Moh’s hardness below 7, humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore etc., the final products change from 613 micron to 44 micron. Through the function of separator and blower, it can meet different customers’ demand.
|
Model |
3R2115 |
3R2615 |
3R2715 |
3R3016 |
4R3216 |
||
|
Roller |
Number |
3 |
3 |
3 |
3 |
4 |
|
|
Diameter (mm) |
210 |
260 |
270 |
300 |
320 |
||
|
Height (mm) |
150 |
150 |
150 |
160 |
160 |
||
|
Ring |
Inside diameter (mm) |
630 |
780 |
830 |
880 |
970 |
|
|
Height (mm) |
150 |
150 |
150 |
160 |
160 |
||
|
Maximum feed size (mm) |
15 |
15-20 |
15-20 |
15-20 |
20-25 |
||
|
Output size (mm) |
0.044-0.165 |
0.044-0.165 |
0.044-0.165 |
0.044-0.165 |
0.044-0.165 |
||
|
Power of main frame (kW) |
15 |
18.5 |
22 |
30 |
37 |
||
|
Fineness of final product (mm) |
0.165 |
capacity (t/h) |
1.2-1.8 |
1.8-2.5 |
2.3-2.8 |
2.6-3.2 |
3.2-4.5 |
|
0.075 |
0.6-1.2 |
1.2-1.8 |
1.8-2.3 |
1.9-2.6 |
2.4-3.1 |
||
|
0.044 |
0.6-1.0 |
0.8-1.2 |
0.9-1.7 |
1-1.9 |
1.8-2.5 |
||
