- Cylinder diameter: 1200mm~4700mm
- Cylinder length: 2500mm~7200mm
- Capacity: 3t/h~190t/h

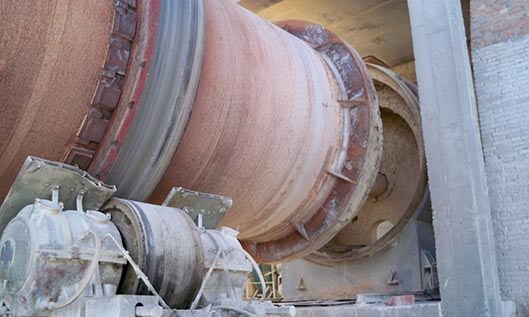

Rotary Kilns are commonly used for heat processing of minerals and aggregates such as lime, cement, and iron ore. To achieve consistent quality results, it is important to maintain a uniform product temperature at the kiln entry, mid zone, and discharge. In most rotary kilns, the challenge with temperature process control is that the temperature sensor must view through flames or heavy smoke and dust. Consequently, when selecting a sensor, the design, wavelength, and alignment are all important considerations.
Application of Rotary kiln:
Rotary kiln is a kind of thermal Equipment, it is widely used in the fields of cement, Nonferrous Metallurgy, ferrous metallurgy, refractory material, chemical materials, paper making.
Features of Rotary kiln:
1. Supporting device apply rolling bearing ( few with sliding bearing) to simple the bearing structure to slow down the kiln power consumption and it also improve the maintenance and inspection conditions.
2. Catch wheel: including two kinds mechanical wheel and hydraulic pressure
3. Gears: single or double. Control the rotating speed by buncher, DE machine and frequency variable motor. Be reliable, energy-saving, and efficient.
4. Cylinder type bolster: lower bolster has three types: fixed, zoom and floating. The structure is simple, replacement is convenient and won’t hurt cylinder.
5. Sealing equipment: there are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing, and graphite block sealing and combination for above. The feather is adaptive for cylinder rotating and swing. And sealing effect is very good.
6. Kiln head hood: including stationary type and flexible type.
7. Transmission device apply speed adjustable motor with big speed adjustable range, stable operation, easy to maintenance advantages. Our Rotary Kiln has slow disk kiln structure, which is composed by Diesel engine, gearbox etc. It could continue to operate when electric stops, its operation is very flexible and convenient and easy for the kiln maintenance and inspection.
|
Type |
Model |
Cylinder Diameter |
Cylinder Length |
Slope |
Capacity |
Speed |
Power |
Weight |
|
Straight Tube Rotary K7iln |
YZ1225 |
1200 |
2500 |
4 |
3 |
0.53-5.25 |
22 |
34 |
|
|
YZ1632 |
1600 |
3200 |
4 |
3.5 |
0.53-5.25 |
15 |
46.82 |
|
|
YZ1828 |
1800 |
2800 |
4 |
4 |
0.28-2.84 |
30 |
59.39 |
|
|
YZ1845 |
1800 |
4500 |
4 |
4.5 |
0.28-2.84 |
30 |
80 |
|
|
YZ1636 |
1600 |
36000 |
4 |
1.2-1.9 |
0.26-2.61 |
22 |
51.023 |
|
|
YZ1939 |
1900 |
39000 |
4 |
1.6-3.4 |
0.31-2.82 |
37 |
70.704 |
|
|
YZ2044 |
2000 |
44000 |
3.5 |
2.4-4 |
0.22-2.26 |
37 |
97.135 |
|
|
YZ2245 |
2200 |
4500 |
3.5 |
3.2-5.3 |
0.23-2.25 |
45 |
125.462 |
|
|
YZ2550 |
2500 |
50000 |
3.5 |
6.2-7.4 |
0.68-1.45 |
55 |
179.606 |
|
|
YZ2555 |
2500 |
55000 |
3 |
7.3-9.8 |
0.79-2.38 |
55 |
191.203 |
|
|
YZ2820 |
2800 |
20000 |
4 |
15-18 |
0.8-1.45 |
75 |
186.373 |
|
|
YZ3028 |
3000 |
28000 |
4 |
18-23 |
0.8-1.45 |
75 |
180.737 |
|
|
YZ3060 |
3000 |
60000 |
3.5 |
16-20 |
0.49-2.41 |
90 |
272.510 |
|
|
YZ3226 |
3200 |
26000 |
4 |
22-27 |
0.8-1.45 |
90 |
185.107 |
|
|
YZ3255 |
3200 |
55000 |
3.5 |
17-23 |
0.1-1.52 |
75 |
271.673 |
|
|
YZ3529 |
3500 |
29000 |
4 |
28-40 |
0.16-1.38 |
110 |
238.031 |
|
|
YZ3560 |
3500 |
60000 |
3.5 |
28-40 |
0.65-2.25 |
125 |
347.872 |
|
|
YZ4030 |
4000 |
30000 |
4 |
52-70 |
0.38-3.52 |
160 |
415.103 |
|
|
YZ4060 |
4000 |
60000 |
3.5 |
55-78 |
0.38-3.52 |
315 |
514.223 |
|
|
YZ4262 |
4200 |
62000 |
3.5 |
80-105 |
0.38-3.52 |
315 |
541.615 |
|
|
YZ4565 |
4500 |
65000 |
3.5 |
110-140 |
0.38-3.52 |
420 |
609.526 |
|
|
YZ4772 |
4700 |
72000 |
3.5 |
150-190 |
0.38-3.52 |
550 |
795.325 |
