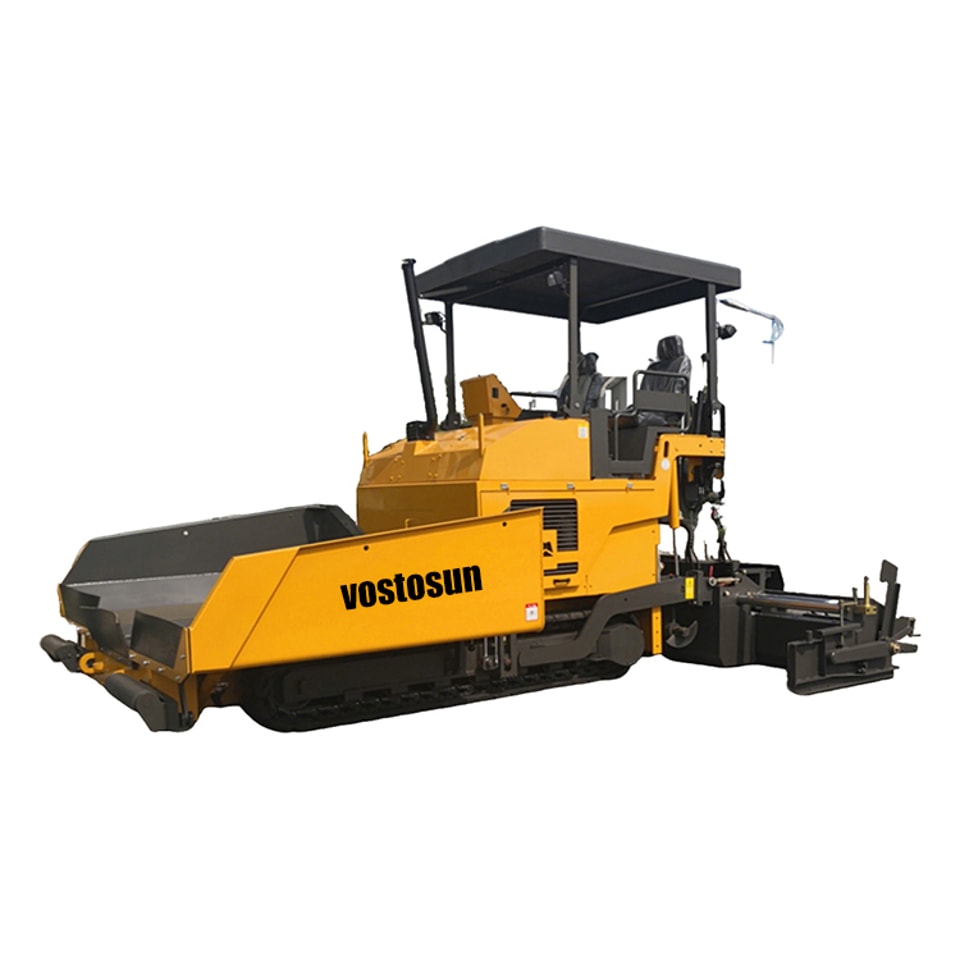

VSP 6000 Asphalt Paver
Product summary information will be dynamically loaded from the backend.
1.Uses for municipal roads, expressway and small-area projects and so on.
2.Adopting Cummins electronic-injection engine, strong power, high reliability and excellent performance on paving.
3.Original imported hydraulic plunger pomp, planetary reduction gear, plunger motor on travel drive system, high reliability, independent drive type under closed control, good stability and flexibility of changing working site.
4.Independent hydraulic system, sensor control to material level, Conveyor and auger in proportional collaboration.
5.The blade and under-plate made of high wearable alloy material or imported wearable armor plate, high-durability.
6.Tamping system with stepless speed regulation, perfect compactioness effect.
7.Electric heating system, convenience for operation and fast heating

Item | unite | VSP6000 |
Basic paving width | m | 2.5 |
Max. paving width | m | 6.0(7.0) |
Max. paving thickness | mm | 300 |
Working speed | m/min | 0-20 |
Running speed | km/h | 0-3.0 |
Theoretical productivity | t/h | 500 |
Hopper capacity | t | 14 |
Grade.ability | % | ≥20 |
Leveling Tolerance(wave) | mm/3m | 2 |
Transverse wave Error | % | ±0.02 |
Arch degree adjusting range | % | -1~+3 |
Manufacturer | | Cummins |
Model | | QSB5.9-C190 |
Rated power | kW | 133 |
Emission standard | | Stage Ⅲ |
tamping frequency | HZ | 25 |
vibrating amplitude | mm | 5 |
Heating type | | Electric |

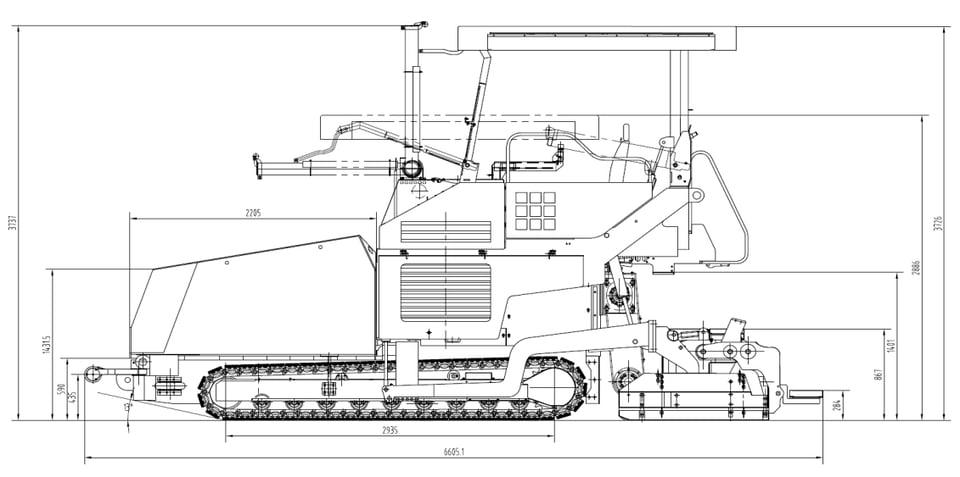

Machine Dimension | mm | 6610x2690x3730/2890 |
Overall mass | t | 19 |
