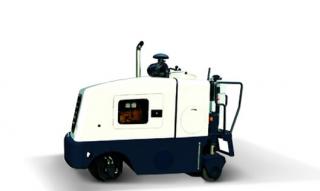

ONE METER MILLING MACHINE VSM101
1.The brake system implements the travelling brake by the reverse dragging of the hydraulic system. The multi-disc typed brake is arranged on the rear wheel reducer to implement the parking brake.
2.The automatic depth control (selectable) adopts the contact-typed or non contact-typed sensor for detection with digitally displayed milling depth.
3. The use of three-wheel drive, hydraulic drive milling drum, with a simple, flexible, drive ability, high construction efficiency, multi-functional, cheap and other significant features.
Model | VSM101 | ||
---|---|---|---|
Max. milling with | mm | 1020 | |
Max. milling depth | mm | 120 | |
Milling wheel | Number of tools | 84 | |
Drum diameter with tools | mm | 660 | |
Engine | Model | D6114 | |
Rated power | kW | 125 | |
Rated speed | rpm | 2200 | |
Specifications | Operating speed | m/min | 0~13 |
Travel speed | kmh | 0~13 | |
Ground clearance | % | ≥20 | |
Ground clearance | mm | ≤120 | |
Operating weight | kg | 14500 | |
Volume | Fuel tank | L | 210 |
Hydraulic oil tank | L | 160 | |
Water tank | L | 360 | |
Conveyor | Width | mm | 400 |
Measurement | Overall machinery LxWxH | mm | 4583×2294×3130 |
Conveyor LxWxH | mm | 6428×700×610 | |
Travel mode | Tire |
