Performance | Rated load | 6000kg |
Overall weight | 19800kg | |

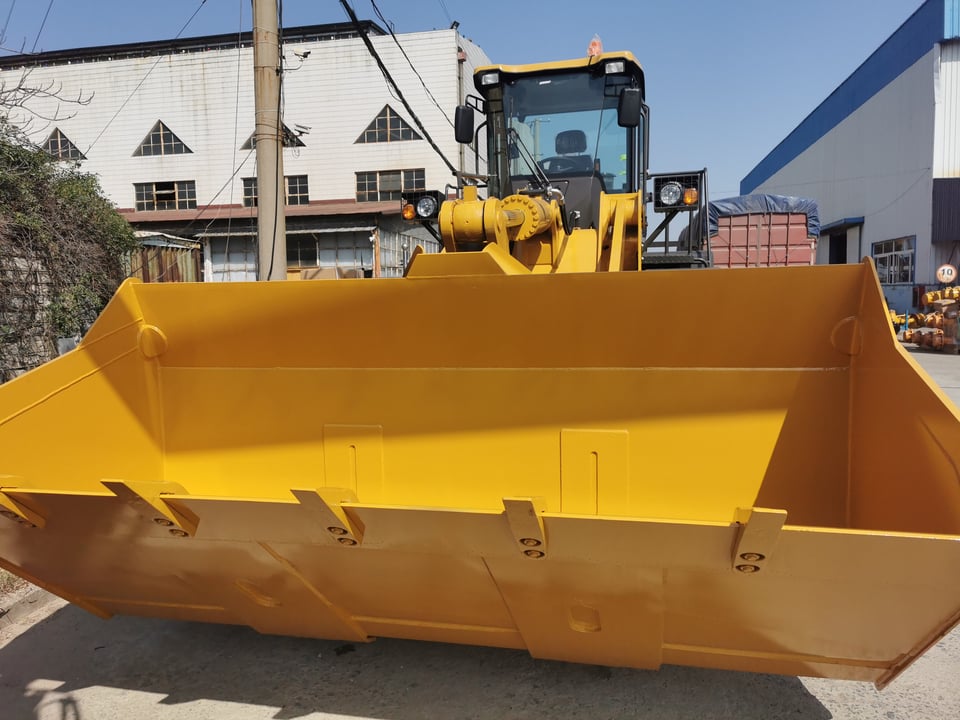

Rated bucket capacity | 3.5-4.5m³ | |
Maximum tractive force | 158KN | |
Maximum breakout force | 204KN | |
Maximum grade ability | 30° | |
Maximum dump height | 3450mm | |
Maximum dump reach | 1255mm | |
Overall dimension (L×W×H) | 8250×3100×3400mm | |
Minimum turning radius | 6500mm | |
Engine | Model | WP10G240E341 |
Type | Inline/water cooled / dry liner / direct injection | |
No. Of cylinder-bore/stroke | 6-126×130mm | |
Rated power | 178kw-2200r/min | |
Maximum torque | 843N.m | |
Min fuel-consume ratio | ≤220g/kw.h | |
Transmission system | Torque converter | Douber turbine four original |
Gearbox number | ZL60 | |
Gear shift | 2 forward shift 1 reverse shift | |
Maximum speed | 38km/h | |
Drive axle | Main reducing spiral | bevel gear grade 1reduction |
Decelerating mode | planetary reduction,grade 1 | |
Wheel base (mm) | 3350mm | |
Wheel tread | 2250mm | |
Minimum ground clearance | 450mm | |
Hydraulic system | System working pressure | 18Mpa |
Boom lifting time | 6.15±0.25s | |
Total time | 10.65±0.5s | |
Fuel tank capacity | 300L | |
Function of leveling automatically | yes | |
Brake system | Service brake | air over hydraulic disc brake on 4 wheels |
Parking brake | manual parking brake | |
Tires | Type specification | 26.5-25 |
Front tyre pressure | 0.4Mpa | |
Rear tyre pressure | 0.35Mpa |
