VSE80.8 EXCAVATOR
A high-performance crawler excavator equipped with a 45 kW Cummins engine, an operating weight of 7.8 tons, and a bucket capacity of 0.34 m³.
Email: info-vs@vostosun.com
Tel:+86-18964444930
Technical Specifications
| ENGINE | DIMENSION | ||
|---|---|---|---|
| Brand / model | Cummins / B3,3 | A Overall length | 6100 mm |
| Type | 4-cycle,Water-cooled, Direct injection and turbocharged | B Overall width | 2198 mm |
| Number (cylinders bore stroke) | 4 – 95 X 115 mm | C Overall height (to top of boom) | 2515 mm |
| Piston displacement | 3,3 L | D Overall height (to top of cab) | 2630 mm |
| Rating power | 45/2200 kw/rpm | E Counterweight ground clearance | 760 mm |
| Alternator | 12V 60A | F Min. ground clearance | 382 mm |
| Battery | 12V, 120 Ah | G Tail swing radius | 1755 mm |
| Max. torque | 214/1600 NM/rpm | H Track grounding length | 2150 mm |
| UNDERCARRIAGE | J Track length | 2757 mm | |
| Structure of chassis | structure X | K Track gauge | 1700 mm |
| Number of shoes | 38each side | L Track width | 2150 mm |
| Number of carriers | 1 each side | M Track board width | 450 mm |
| Number of track rollers | 5 each side | N Turntable width | 2198 mm |

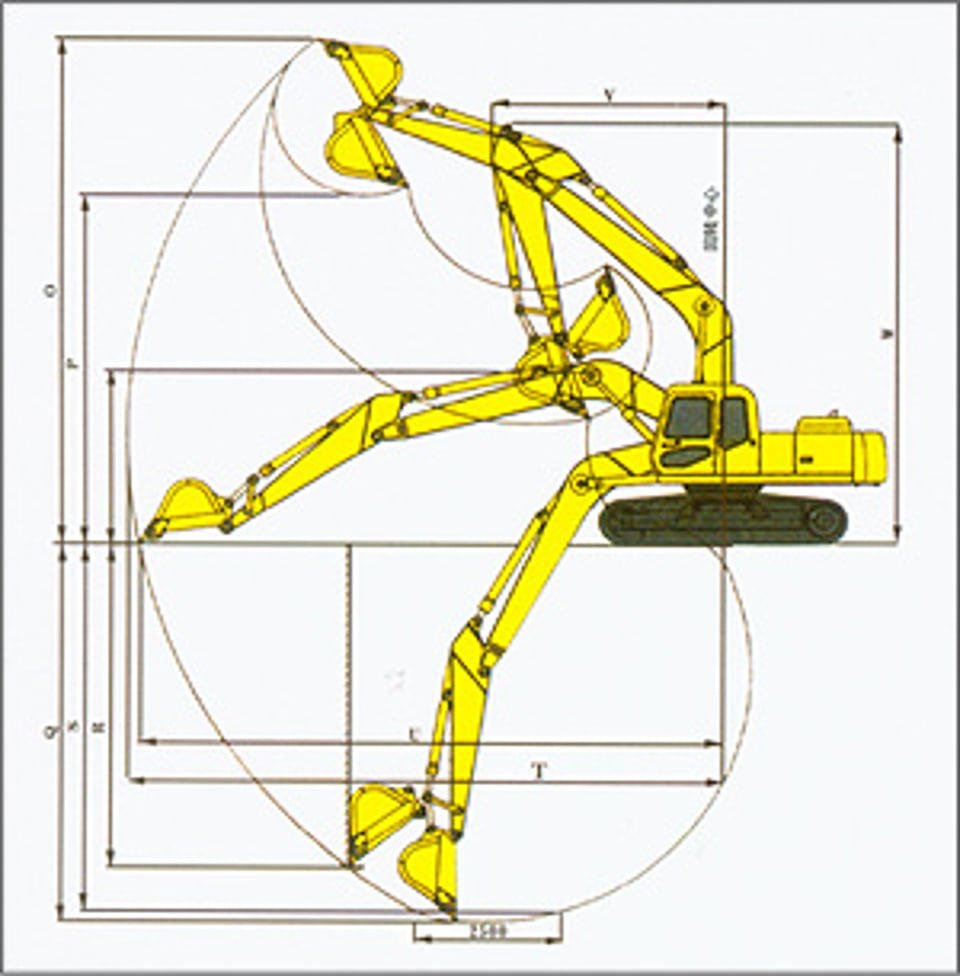

| HYDRAULICS | V Min swing radius | 1795 mm | |
| Hydraulic pump / type | Toshiba / PVC90 Variable displacement piston type | W Max height at min swing radius | 5500 mm |
| Setting pressure | 27,5 Mpa (275 kg/cm2) | Z Height of counterweight | 1270 mm |
| Valve Type | Toshiba / IB18 | A1 Grounding length (in transportation) | 3700 mm |
| Control | full hydraulic joystick | Boom length | 3710 mm |
| Travel motor / type | Kayaba / MAG-85VP Axial piston ×2 | Arm length | 1650 mm |
| Swing motor / type | Toshiba / SG025E Axial piston ×1 | WORKING RANGE | |
| HYDRAULIC CYLINDERS (Bore x Rod) | Operating weight | 7800 kg | |
| Boom | 1 - 115 x 65 mm | Standard type bucket | 0,34 m3 |
| Arm | 1 - 100 x 60 mm | O max. digging height | 7165 mm |
| Bucket | 1 - 90 x 55 mm | P max dumping height | 5068 mm |
| Blade | 1 - 120 x 70 mm | Q max digging depth | 4038 mm |
| PERFORMANCE | R max vertical wall digging depth | 3505 mm | |
| Swing speed | 10 rpm | S max. digging depth (2.5m horizontal) | 3680 mm |
| Travel speed | 2.7 ~ 5.1 km/h | T max digging reach | 6333 mm |
| Max climbing degree | 35° | U max digging reach at ground level | 6182 mm |
| Average group press | 30 Kpa | Bucket digging force | 52.7 KN |
