Main Features
Compact structure, maneuverable movement suitable for narrow Space operation
Closed cabin with joystick control system
Double accelerograph control
Auto-leveling system
Multi-function with a wide range of attachments
Hydraulic brake
Parameters
| Item | Details |
|---|---|
| Rated operating capacity | 1500 kg |
| Tipping load | 3000 kg |
| Bucket capacity | 0.6–0.7 m³ |
| Operating weight | 4500 kg |
| Max. travel speed | 10 / 20 km/h |
| Hydraulic pump flow | 75 / 140 L/min |
| Fuel tank capacity | 85 L |
| Overall dimensions | 3385 × 1850 × 2025 mm |
| Height to bucket hinge pin | 2920 mm |
| Width with bucket | 1850 mm |
| Track width | 20 mm |
| Track length on ground | 1500 mm |
| Ground clearance | 200 mm |
| Engine Maker / Model | Weichai WP4.1 |
| Net power | 100 hp / 2500 rpm |
| Engine type | 4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
| Displacement | 3.9 L |
| Standard configuration | Enclosed operator cab Hydraulic joystick controls Standard bucket Auxiliary hydraulic couplers |

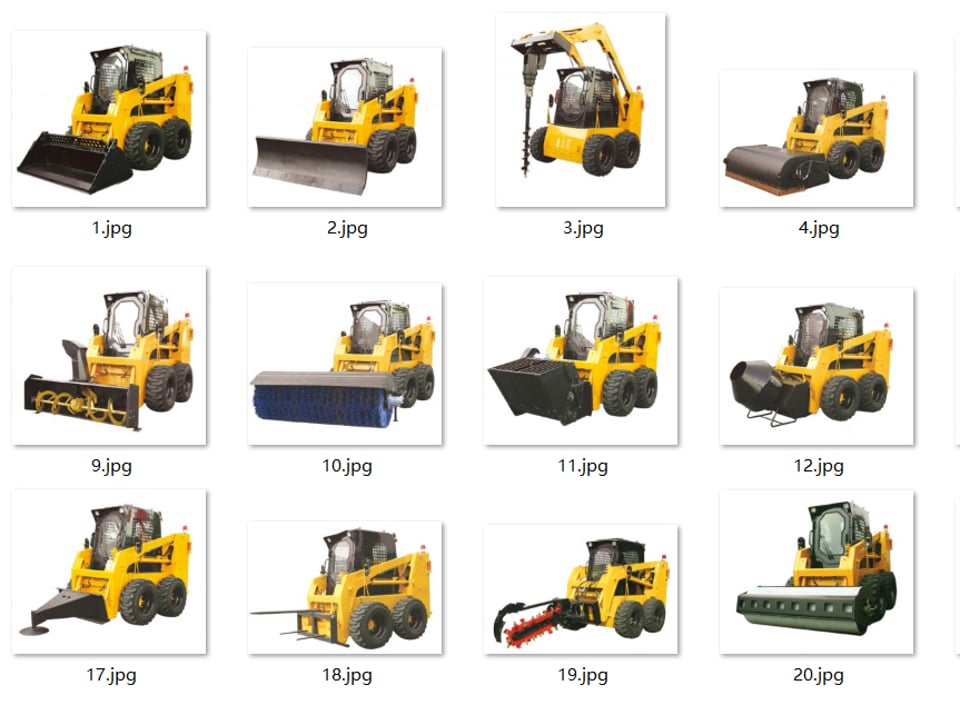

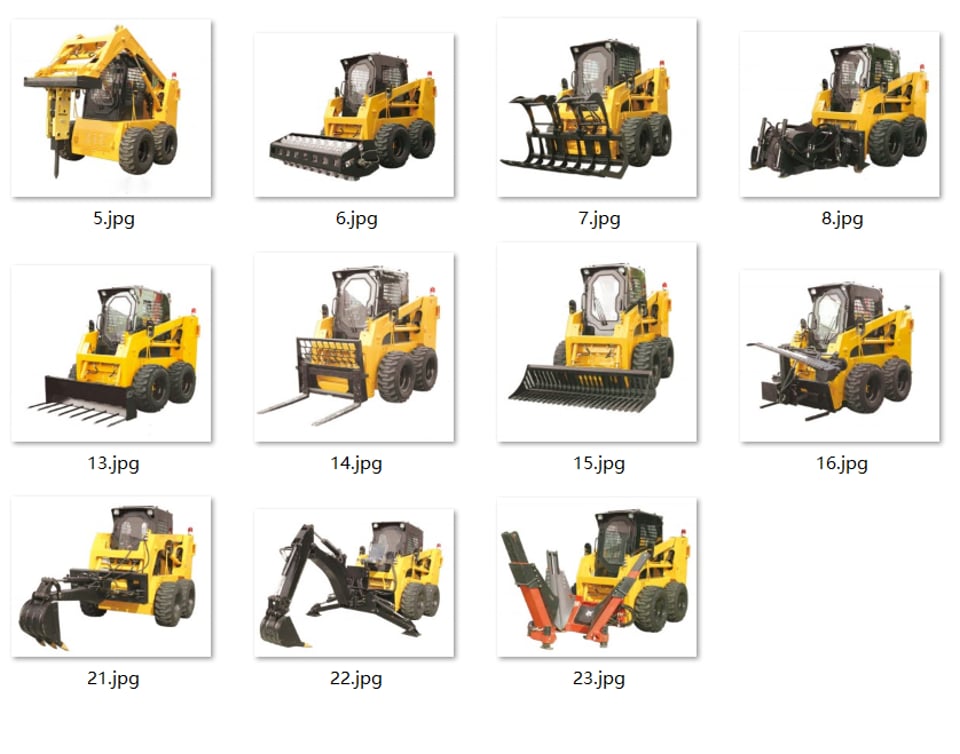

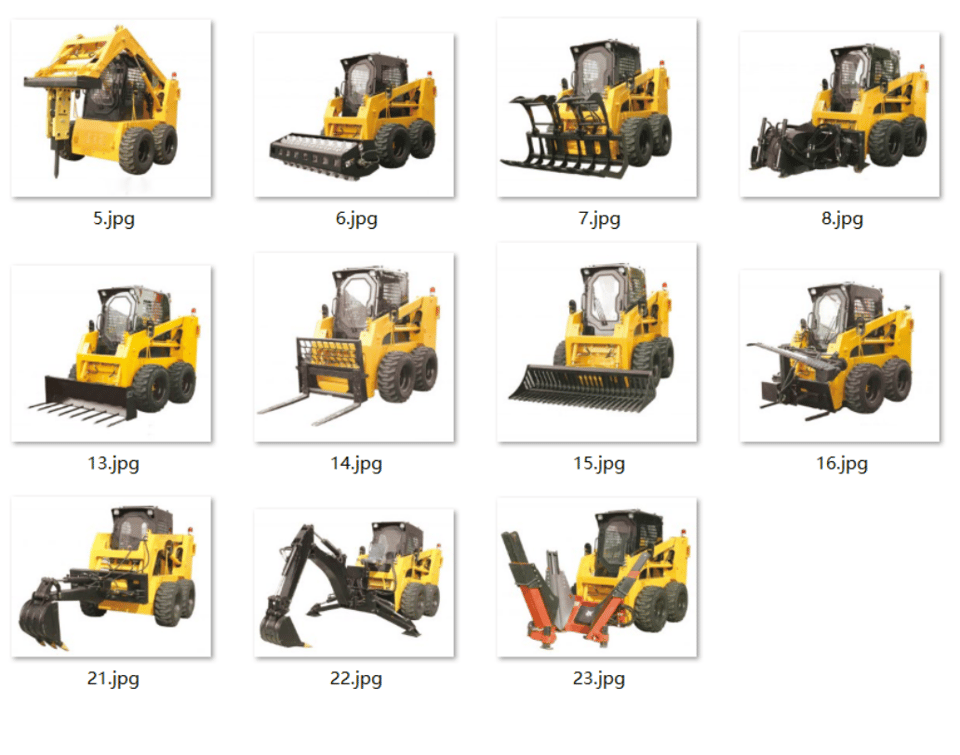

Attachment can be optional
