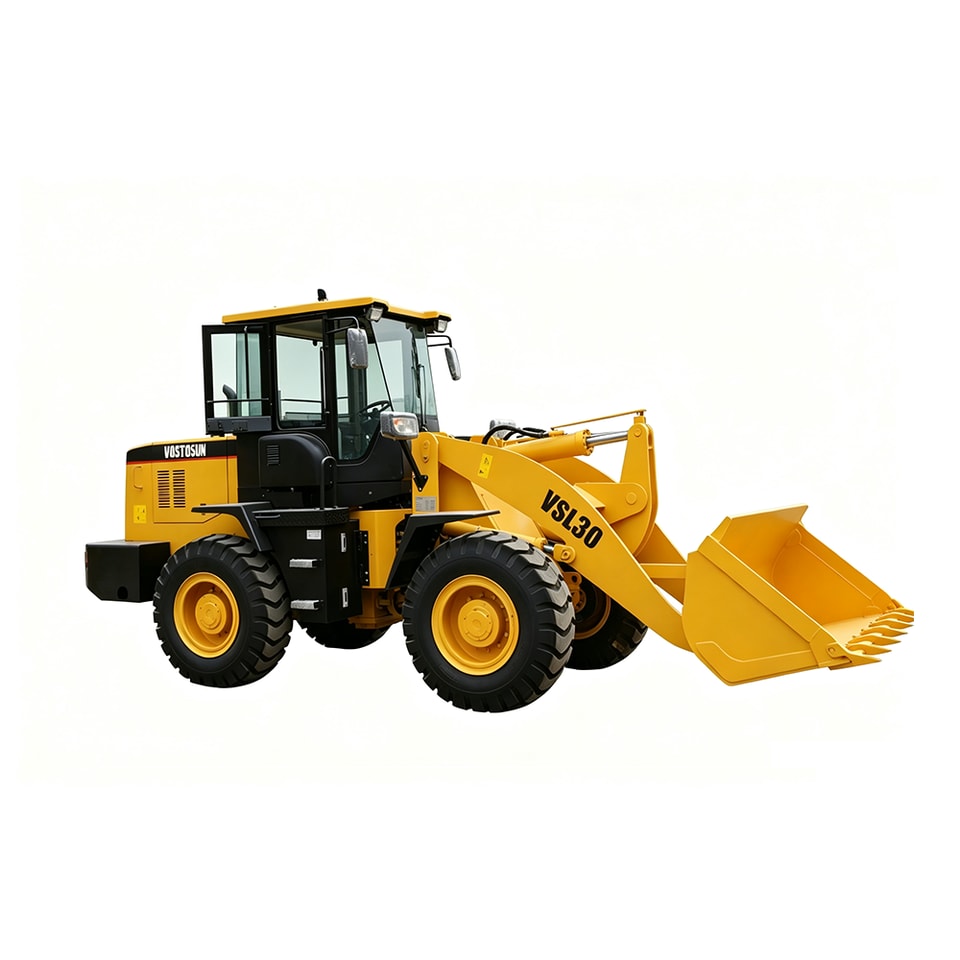

1.Very large space, whole vision cab suspension seat, relaxed and comfortable new mode of operation.
2.Advanced and reliable engine, fuel consumption is lower and lower emissions.
3.High strength reserve of transmission, drive axle, the quality is more reliable.
4.Are all made of high quality eddia hydraulic line, rational layout, high reliability.
5.After lift type metal hood structure, durable, maintenance more convenient.
6.Work device adopts computer optimization design, high discharge height, flexible operation of the light, smooth and reliable action, work efficiency is higher.
Performance | 1 | rated loading | 3000kg |
2 | overall weight | 9600kg | |
3 | bucket capacity | 1.7-2.5m3 | |
4 | maximum traction force | 95KN | |
5 | maximum breakout force | 127KN | |
6 | maximum grade ability | 30 | |
7 | maximum dump height | 3100mm | |
8 | maximum dump reach | 1006mm | |
9 | overall dimension (LWH) | 6890*2430*3070mm | |
10 | minimum turning radius | 5097mm | |
Engine | 11 | model | WeiChai engines |
12 | type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
13 | -*NO. of cylinder-bore*stroke | 6-108*125 | |
14 | rated power | 92kw2200r/min | |
15 | maximum torque | 500N.m | |
16 | min. fuel-consume ratio | 210Kw h | |
Transmission system | 17 | torque converter | YJ315-X |
18 | gearbox mode | Power shaft normally engaged straight gear | |
19 | gears | 42 4 forward 2 reverse | |
20 | maximum speed | 40km/h | |
Drive axles | 21 | main reducing spiral | bevel gear grade 1reduction |
22 | decelerating mode | Planetary reduction grade 1 | |
23 | wheel base (mm) | 2660mm | |
24 | wheel tread | 1800mm | |
25 | ground clearance | 400mm | |
Hydraulic system | 26 | system working pressure | 16,5MPa |
27 | boom lifting time | 4.83 | |
28 | total time | 9.150.5s | |
Brake system | 31 | service brake | air assist disc brake on 4 wheels |
32 | parking brake | Manual disk brake | |
Tyre | 33 | type specification | 17.5-25 |
34 | front tyre pressure | 0.4Mpa | |
35 | rear tyre pressure | 0.35Mpa |
